Product Description

• WARRANTY: One Year

  SALES LEAD TIME: Typically 14 Days

  ACCESSORIES:  Transport Case, User Manual, USB Cable, Power Supply 100-240VAC with Protection Filter Pall and Adapter Set

  ADDITIONAL OPTIONAL ACCESSORIES:

  Flowlab Software                                $390.00

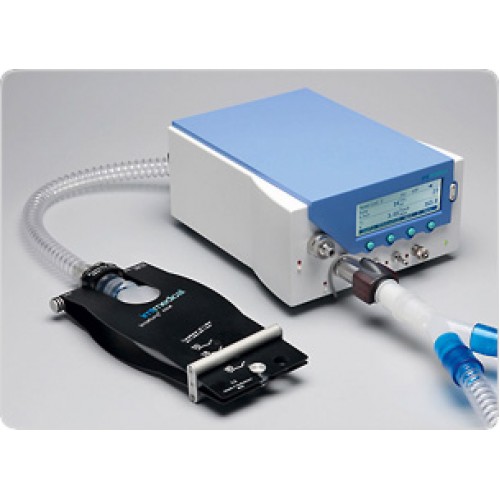

  Smartlung Adult Test Lung               $660.00

  Smartlung Infant Test Lung               $660.00

  Adapter Set                                          $105.00

  Hi-Pressure Adapter                           $80.00

  GENERAL:

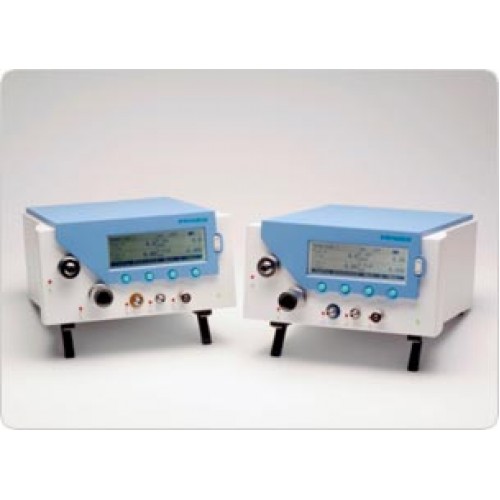

  Measuring your pneumatic equipment for reliability and precision with a dependable calibration tool is critical in avoiding fatal errors. Precision and reliability are exactly what the FlowAnalyserTM Product Line provides. The FlowAnalyserTM measures flow, pressure, temperature, humidity and O2 concentrations bi-directionally. The one-of-a-kind Adult, Pediatric and High Frequency ventilation measuring modes make the FlowAnalyserTM the ideal calibration tool for all ventilators, anesthesia machines and spirometers. The FlowAnalyserTM distinguishes itself from other calibration tools by combining a simple, intuitive multilingual user interface with the highest precision. FlowLab software complements the FlowAnalyserTM by offering a wide range of graphical analysis capabilities. Swiss devotion to detail at its best.

  FEATURES:

  • Flow measurements (high and low range) for air, oxygen and nitrous oxide
  • Volume measurements (automatically or with external trigger input)
  • Pressure measurements (high and low range) for compressed gases and patient pressure
  • Oxygen concentration from 0…100%
  • Gas temperature measurement
  • Gas humidity measurement
  • Several interfaces (RS232, Ethernet, USB, analog) to archive data on a PC or printer

  FLOWLAB SOFTWARE

  FlowLab™ Software is the ideal software package. Over the easy menu controlled interaction the type of display for the measurements can be selected: real-time curves, numeric values, statistics, trendings!

  SPECIFICATIONS:

  Measurements:

  Low Flow:           0 – 5 mbars   (PF-302 LOW Version Only)

  Range:                -20…20sl/min

  Accuracy:          +/- 1.75% of reading or 0.05 sl/min

  High Flow

  Range:              -300…300sl/min

  Accuracy:         +/- 1.75% of reading or 0.1 sl/min

  Volume

  Range:              0…10sl

  Accuracy:         +/-2% of reading or 0.02sl

  Differential Pressure

  Range:              -150…+150mbar (-2… +2psi)

  Accuracy:         +/-0.75% of reading or 0.1mbar

  High Pressure

  Range:              0…10bar (0…142psi)

  Accuracy:         +/- 1% of reading or 10mbar

  Atmospheric Pressure

  Range:              0…1150mbar

  Accuracy:         +/-1% of reading or 5 mbar

  Oxygen

  Range:              0…100%

  Accuracy:         +/-1% O2

  Temperature

  Range:              0…100degrees Celsius

  Accuracy:         +/-1.75% of reading or 0.5degrees Celsius

  Humidity

  Range:              0…100%

  Accuracy:         +/-2% r.H.

  Graphic Display:

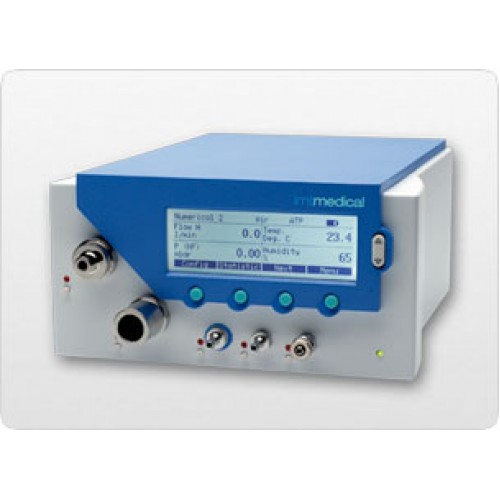

  Intuitive user interface with numeric values, statistics, volume trigger configuration, gas selection and calibration menus.

  Respiratory  Parameters:

  Respiratory Parameters can be measured for Pediatric, Adult and High Frequency ventilators: Vti, Vte, Vi, Ve, Rate, I:E, Ti, Te, Ration Ti/T, P/Peak, Pmean, PEEP, Pplateau, Cstat, PeakFlow Insp., PeakFlow Exp.

  Communication Interfaces:

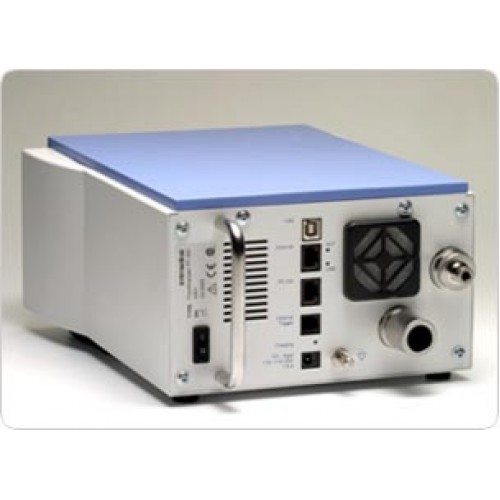

  USB for PC tool FlowLab, RS232 for individual communication TTL for external Trigger and as an option: Ethernet connection

  Power and Physical

  AC Input:                           90…260VAC, 50/60Hz

  Power Consumption:     10VA

  Internal Battery:               Yes

  Gas Compatibility:          Air, Oxygen, Nitrous Oxide, Nitrogen, Helium, Heliox, Carbon Dioxid and mixtures

  Gas Standards:               ATP, AP21, STP, STP Humid, BTPS, BTPD, 0/1013, 20/981, 15/1013, 20/1013, 25/991

  Dimensions:                    22 x 25 x 12cm

  Weight:                             3.7kg

  Environmental Data

  Temperature:                 10 to 40 degrees Celsius                     Humidity:       up to 95% r.H.

  Compliance Approvals:    CE and CSA
