IMT Medical OR-703 MultiGasAnalyser (CO2, N2O, Anesthetic Agents)

Brand: IMT Medical
Product Code: OR-703
Availability: Indent 1-2 bulan

Harga :CALL

Category:

Product Description

WARRANTY:               One Year Manufacturer Warranty
INTRODUCTION:

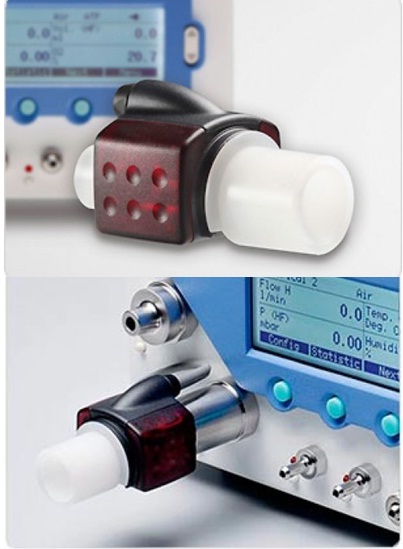

Introducing the worlds smallest and lightest Multi-Gas Sensor. IMTMedical is expanding the capabilities of the FlowAnalyser with the MultiGasAnalyser OR-703 by offering instant gas concentration measurements of CO2, N2O, Halothane, Enflurane, Isoflurane, Sevoflurane, Desflurane. The OR-703 seamlessly integrates with the FlowAnalyser and its FlowLab Software. The imtmedical MultiGasAnalyser OR-703 probe is designed using the latest advances in micro system technology. The MultiGasAnalyser provides a complete in-line, real-time monitoring system with unique versatility and design. When testing the performance and accuracy of anesthesia delivery and monitoring systems or CO2 monitoring devices, the sensor proves its absolute reliability. The MultiGasAnalyser sensor head measures infrared light absorption at several different wavelengths and determines the precise gas concentrations of the mixtures.
SPECIFICATIONS:
Measurements:
CO2:                  Range: 0 – 10%
                           Accuracy: +/-8% of reading or +/-0.3%
N2O                   Range: 0 – 100%
                           Accuracy: +/-8% of reading or +/-2%
Hal, Iso, Enf:    Range: 0 – 5%
                           Accuracy: +/-8% of reading or +/-0.2%
Sev:                   Range: 0 – 8%
                           Accuracy: +/-8% of reading or +/-0.2%
Des:                   Range: 0 – 18%
                           Accuracy: +/-8% of reading or +/-0.2%
Response Time:
CO2<60ms, N2O and the 5 anesthetic Agents<150ms
Monitoring:
Numerical data available through the FlowAnalyser, Numerical data and real-time curves available through the FlowLab Software. Interface throught the RS-232 Port
Physical Data:
Weight:     <30 grams (excluding cable)
Size:         3.7 x 2.7 x 3.5 cm (1.45 x 1.1 x 0.9 inches)
Environmental Data:
Operating:
Storage:         -20 – 50 degrees Celsius
Humidity:       10 – 95%, non-condensing
Atm. Pressure:    700 – 1200 mbar (3048m)
Compliance and Approvals:
CE marked according to the 93/42/EEC MDD
ISO 11196: 1997, EN864: 1996, EN12598:1999, ISO/DIN 21647:2003, ISO 7767, ASTM-F 1452-92, ASTM-F 1456-92, and ASTM-F 1462-93
