Product Description

• WARRANTY: One Year
• SALES LEAD TIME: 14 DAYS
• ACCESSORIES: Carrying Case, Operator Manual, Calibration Certificate

  INTRODUCTION:

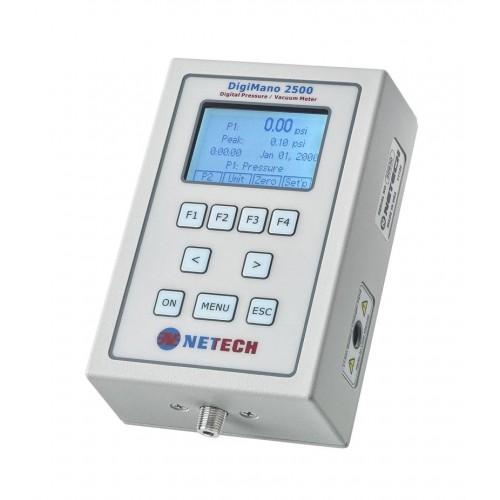

  The Digimano 2500 is a versatile, high performance, microcontroller-based, pressure/vacuum meter. The precision instrument is designed for use in numerous laboratory medical and industrial applications involving testing and calibration of pneumatic sytems.

  Digimano 2500 is compatible with a wide range of gases and fluids. It is housed in a rugged aluminum case with a sealed membrane keypad. The built in serial port, real time clock, dual relay control outputs (optional), real time Data outpu, internal data storage memory, are ideal for industrial process control as well as automated pressure calibration and pressure control applications.

  FEATURES:
  Large Graphics Display
  High Accuracy 0.05%
  Menu Driven and User Friendly
  Non Corrosive Fluids and Gas
  User Selectable Engineering Units
  Peak Pressure Readings
  RS 232 Communication Port
  User Selectable Capture Rate for Real Time Data OutPut
  Real Time Clock
  Data Storage and Export Records Capability
  Rugged Aluminum Case
  Sealed Membrane Switches
  Rechargeable Li-Ion Polymer Battery
  Optional Pressure Control Dual Relay Output

  SPECIFICATIONS:
  Display: Graphics 128×64 LCD
  Model Type: Vacuum and Gauge
  Pressure Range: -14PSI to 100PSI
  Accuracy: 0.05% full range, +/- 1 count
  Zero Drift: +/- 0.015% of full scale
  Medial Compatibility: Non-Corrosive Fluids and Gases
  Pressure Connection: 1/8″ – 27 NPT
  Over Pressure: 2 x Pressure Range
  Operating Temperature: 32 degrees F to 113 degrees F (0 degreees C to 45 degrees C)
  Storage Temperature: 25 degrees F to 131 degrees F (-5 degrees C to 55 degrees C)
  Power: Li-Ion Polymer Battery & Charger
  Hours of Operation: 12 Hours Continuous
  Physical Dimensions: 4.75 x 2.5 x 1.5 inch
  Weight: 11.9 pz (0.34kg), without battery
