WARRANTY: One Year

ACCESSORIES: Soft Carrying Case, Operator Manual, Calibration Certificate, ECG Snap Adapters

GENERAL INFO:

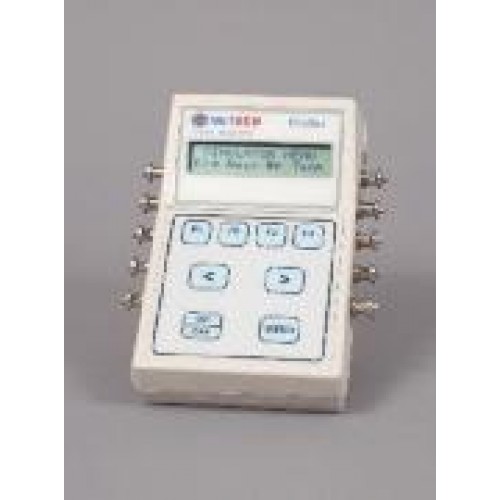

The MiniSim Basic, Arrhythmia Simulator is a powerful, comprehensive but basic patient simulator in a compact case. It is designed for testing the performance of basic patient monitoring instrumentation quickly and easily. The microprocessor based instrument is menu driven via its tactile feel keypad and easy to follow LCD display. The MiniSim 1000 provides full 12 lead ECG simulation with 14 user selectabel rates from 30 to 350 BPM and 14 user selectable amplitudes from 0.15 to 5 mV. Sine, Square, and Triangle performance waveforms are simulated with 14 user selectable rates from 0.1 to 100 Hz.The MiniSim also simulates 45 different arrhythmias including atrial, ventricular, tall T wave, ST elevation, ST depression, myocardial infraction, blocks, pulse, and pacer waveforms.

FEATURES:
Easy to Use
Small, Compact Size
Menu driven operation
Large LCD Display
Tactile Keypad
Battery or AC Operation

SPECIFICATIONS:

ECG: 12 leads with independent outputs referenced to RL.

NORMAL SINUS RHYTHM (NSR)
ECG Rates: 30, 60, 70, 80, 90, 100, 120, 150, 180, 210, 240, 270, 300, and 350 BPM. Accuracy 0.5%.
Amplitudes: 0.15, 0.3, 0.5, 1.0, 2.0, 3.0, 4.0, and 5.0 mV on Lead II. Lead 1 is 0.6 X Lead II, Lead III is 0.4 X Lead II, and Lead V is the same as Lead II.
High Level: 500 X low level output on Lead II.
Accuracy: 2% (1-5mV).

PERFORMANCE WAVEFORMS (PERF)
Sine, Square, Triangle, Pulse
Frequencies: 0.1 to 0.9 in 0.1 Hz steps.
to 9.0 in 1.0 Hz steps.
10 to 100 in 10 Hz steps.
Accuracy: 1%
Amplitudes: 0.1, 0.2, 0.5, 1.0, 2.0, 3.0, 4.0, and 5.0 mV on Lead II.
Pulse: 20 ms pulse of 1mV amplitude repeated at 4 second intervals.

R WAVE DETECTION (RWD)
Widths: 10, 40, 50, 60, 70, 80, 90, 100, 110, and 120 ms.
Amplitudes: 0.15, 0.3, 0.5, 1.0, 2.0, 3.0, 4.0, 5.0 mV on Lead II.

PACER (PCR)
AP: Atrial Pacer set at 70 BPM.
ASP: Asynchronous Pacer – Ineffective Pacing.
Pacer Amplitudes: + 2 mV and – 2mV.
QRS Amplitudes: 1 mV
PCR: Pacer pulses alone.
Pacer Widths: 0.1, 0.2, 0.5, 1.0, 1.5, and 2.0 ms.
Amplitudes: 0.15, 0.3, 0.5, 1.0, 2.0, 3.0, 4.0, and 5.0 mV.
VP: Ventricular Pacer set at 70 BPM.
AVP: Atrial Ventricular Pacer set at 70 BPM.
QRS Amplitude: 1 mV.
Pacer Amplitude: -2mV.

POWER REQUIRMENTS:
One 9 Volt alkaline battery or optional AC adapter.

PHYSICAL CHARACTERISTICS:
Dimensions: 5.5 X 3.5 X 1.5 inches (13.9 X 8.9 X 3.8 cm).
Weight: 10 oz ( 0.3 kg).

TEMPERATURE REQUIREMENTS:

Operating: 59 to 95 Degrees F (15 to 35 Degrees C).
Storage: 32 to 131 Degrees F (0 to 55 Degrees C).
